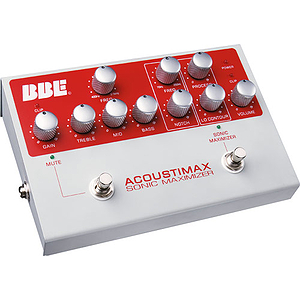

BBE Acoustimax Acoustic Guitar / Instrument Preamp

In the four years since BBE last offered its award-winning 386 acoustic preamp, BBE's design and engineering teams studied the recording and sound reinforcement needs of serious acoustic players. The result is the Acoustimax, a foot-pedal-style (or "stompbox- style") acoustic preamp which raises the bar for amplified acoustic instrument sound quality.

Features:

• Three band, recording-console quality eq with a sweepable mid-range band
• Low-frequency notch filter
• Phase reversal
• Ground lift
• Line level out
• Dedicated tuner out
• TRS effects loop
• Pre/post switchable-balanced DI output with pad
• Hardwire bypass
• Non-slip rubber bottom
• 12v power supply included

• Frequency response - 50Hz to 20kHz
• Treble ±12dB @ 10kHz
• Mid ±12dB @ 400kHz to 2.5kHz
• Bass ±12dB @ 60kHz
• Notch 0 to -12dB @ 70Hz to 250kHz
• Contour: +15dB @ 50Hz
• Process: +15dB @ 10kHz
• Maximum output +10dBu @ instrument jack
• Noise
  • Instrument jack: -98dBv (unity gain)
  • Line out: -88dBv (+10dB gain)
• Total harmonic distortion (THD) 0.05% @ 1kHz
• Impedances
  • Input: 2.2M Ohm
  • T uner out: 2k Ohm
  • L ine out: 1k Ohm
  • Instrument out: 2k Ohm
  • XLR out: 600 Ohm (* 0dBu=0.775Vrms)
• Power requirement DC inlet +12 VAC min. 200ma
